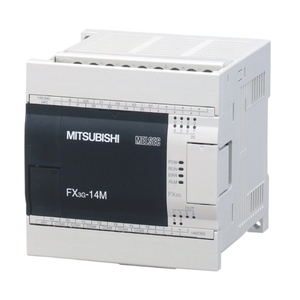

FX3G-14MT/DS - Mitsubishi Programmable Controllers Melsec
The Mitsubishi FX3G-14MT/DS PLC runs on 24V DC with 32K steps EEPROM memory and transistor outputs for compact automation. This Mitsubishi FX3G-14MT/DS PLC is produced by Mitsubishi and positioned under Mitsubishi PLC solutions used in industrial control panels. It provides 8 digital inputs, 6 digital outputs, expandable I/O up to 256 points, IP10 protection, optional buffer battery support, and belongs to the FX series PLC family.
| Brand | Mitsubishi |
| Product Type | PLC(Programmable Logic Controller) |
| Product | FX3G-14MT/DS |
FX3G-14MT/DS Mitsubishi Programmable Controllers Melsec Technical Specifications
| Specification | Value |
|---|---|
| Type | FX3G |
| Power Supply (V) | 24 |
| Current Type | DC |
| Program Memory | 32K STEPS |
| Program Memory Unit | EEPROM |
| Integrated Digital Inputs | 8 |
| Integrated Digital Outputs | 6 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Local I/O Points | 128 |
| Local + Remote I/O Points | 256 |
| Expandable | YES |
| Cycle Time LD (ns) | 210 |
| Cycle Time MOV (ns) | 500 |
| Power Consumption (W) | 19 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Max. Ambient Temperature (Β°C) | 55 |
| Series | MELSEC-F SERIES |
| Depth (mm) | 86 |
| Weight (kg) | 0,5 |
| Width (mm) | 90 |
| Height (mm) | 90 |
| CE | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
The Mitsubishi FX3G-14MT/DS PLC is a programmable logic controller designed for compact industrial automation tasks. This Mitsubishi FX3G-14MT/DS PLC operates on 24V DC power, includes 32K steps EEPROM program memory, and integrates 8 inputs and 6 transistor outputs with SINK logic. It belongs to the MELSEC-F FX series and is commonly installed in control cabinets requiring stable logic control and limited panel space.
In industrial applications, the Mitsubishi FX3G-14MT/DS PLC is used in conveyors, small packaging machines, automated workstations, and basic assembly systems. Its stable DC operation and predictable scan performance support reliable control of sensors, relays, and actuators. The PLC enables consistent machine sequencing in environments where compact size, defined I/O capacity, and dependable operation are essential for daily production processes.
The Mitsubishi FX3G-14MT/DS PLC reflects Mitsubishi Electricβs established PLC design standards. With defined memory capacity, certified compliance, and compatibility within the FX series architecture, it is suitable for long-term industrial use. This PLC is trusted by engineers for dependable control behavior, straightforward expansion capability, and integration into Mitsubishi PLC-based automation systems across industrial applications.
