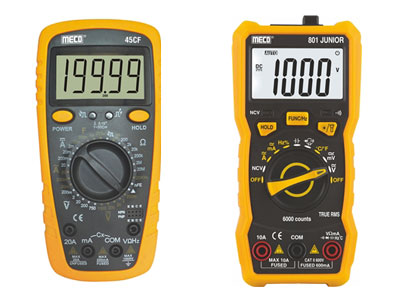

Meco Multimeter - 801, 45CF Digital Multimeters
Meco multimeters provide defined electrical measurement functions for voltage, current, resistance, and continuity testing across industrial and field applications. The Meco Multimeter, manufactured by Meco, operates on electronic measurement principles with digital display modules referenced through Meco documentation.
These instruments use compact handheld housings, internal sensing circuits, and probe-based interfaces suited for diagnostics, panel testing, and equipment maintenance. Classification types include digital, analog-digital, and auto-ranging formats with standard terminal configurations. Defined by electronic measurement technology, handheld electrical structure, industrial testing classification, and probe-based interface characteristics.

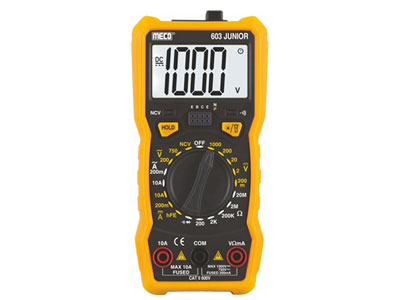

Meco Multimeter - 603 JUNIOR
Display: 3½ digits with a 2000 count LCD and backlight for clear visibility.
- Manual Ranging: Allows manual selection of the measurement range for precision.
- Voltage Measurement: Measures DC voltage up to 1000V and AC voltage up to 750V.
- Current Measurement: Handles DC and AC current up to 10A.
- Resistance Measurement: Measures resistance up to 20MΩ.
- Additional Testing Functions: Includes diode test, hFE (transistor gain) test, and continuity test with LED, buzzer, and EF strength indicators.

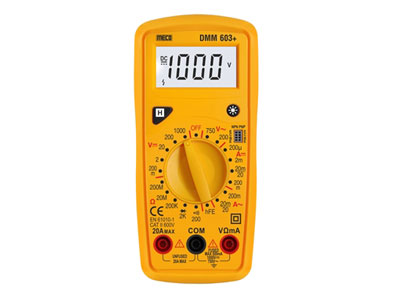

Meco Multimeter 603
Display: 3½ digits with a 2000 count LCD and backlight for clear visibility.
- Voltage Measurement: Can measure DC voltage up to 1000V and AC voltage up to 750V.
- Current Measurement: Handles DC and AC current up to 20A.
- Resistance Measurement: Measures resistance up to 200MΩ.
- Additional Functions: Includes audible continuity testing, diode testing, and hFE (transistor gain) testing.

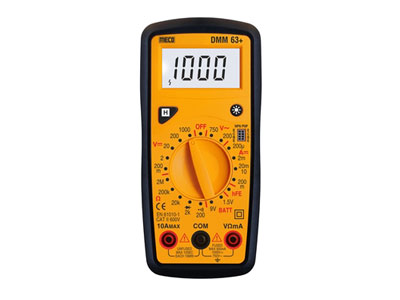

Meco Digital Multimeter - 63+
Display: 3½ digits with a 2000 count LCD and backlight for clear visibility.
- Voltage Measurement: Measures DC voltage up to 1000V and AC voltage up to 750V.
- Current Measurement: Handles DC current up to 10A.
- Battery Test: Includes battery testing capability for 1.5V and 9V batteries.
- Resistance Measurement: Measures resistance up to 2MΩ.
- Additional Functions: Features audible continuity testing, diode testing, and hFE (transistor gain) testing.

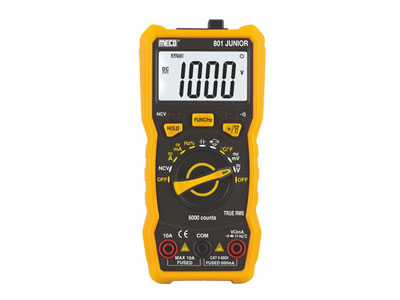

Meco 801 Digital Multimeter
Display: 3 5/6 digits with a 6000 count LCD and backlight for enhanced visibility.
- Auto Ranging: Automatically selects the correct measurement range for convenience.
- True RMS Measurement: Provides accurate readings for non-linear loads.
- Voltage Measurement: Measures up to 1000V DC and 750V AC.
- Current Measurement: Handles up to 10A for both DC and AC.
- Resistance Measurement: Measures resistance up to 60MΩ.
- Capacitance Measurement: Measures capacitance up to 100.0mF.
- Frequency Measurement: Measures frequency up to 10.00MHz.

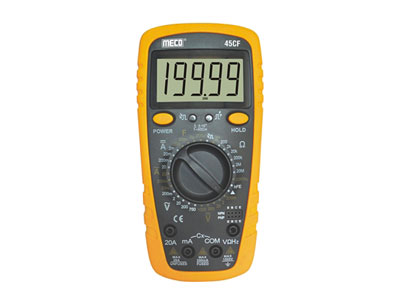

Meco 45CF Digital Multimeter
Display: 4½ digits with a 20,000 count for high-resolution readings.
- Manual Ranging: Allows for manual adjustment of measurement ranges.
- Voltage Measurement: Measures up to 1000V DC and 750V AC.
- Current Measurement: Handles up to 20A for both DC and AC.
- Resistance Measurement: Measures resistance up to 20MΩ.
- Capacitance Measurement: Measures capacitance up to 200µF.
- Frequency Measurement: Measures frequency up to 20kHz.
IndMALL Automation brings you Meco Digital Multimeters, renowned for precision and versatility. Our range includes models from 3½ to 4½ digits, accommodating up to 20,000 counts, catering to diverse measurement needs. These devices feature manual to auto-ranging capabilities, ensuring accurate readings for DC and AC voltage, current, resistance, capacitance, frequency, and temperature. Models like the DMM 603+ and 45CF highlight our commitment to quality with features such as True RMS measurements and robust protective holsters. Each multimeter is equipped with large, clear LCDs, durable casings, and functionalities like diode testing and continuity checks. Perfect for both professional and hobbyist applications, Meco multimeters offer reliable, precise measurement solutions in any setting.
Frequently Asked Questions
What is the function of a multimeter?
A multimeter measures multiple electrical properties such as voltage, current, and resistance. It consists of a digital or analog meter combined with internal circuitry, including batteries and resistors. This design allows for the precise and rapid measurement of various electrical quantities, making it essential for troubleshooting and testing electrical circuits.
What are the three types of digital multimeter?
Three common types of digital multimeters are:
Fluke Digital Multimeter: Widely used for measuring various electrical circuit variables with high accuracy.
Clamp Digital Multimeter: Specifically designed to measure current flow in a circuit without direct contact.
Autoranging Multimeter: Automatically selects the appropriate measurement range, simplifying the testing process.
Is digital multimeter better?
Digital multimeters are generally considered better than analog multimeters due to several advantages. They offer higher precision and easier readability, with clear digital displays eliminating parallax errors. Additionally, digital multimeters typically feature more functionalities and are less susceptible to interference, making them more versatile and reliable for varied electrical measurements.
Request Quote for Meco Multimeter.
