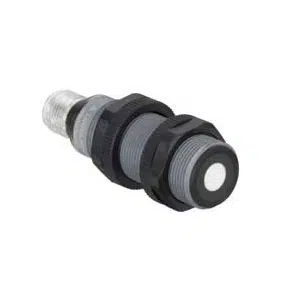

Leuze RKU318-800/4T-M12 Ultrasonic Sensor
The Leuze RKU318-800/4T-M12 Ultrasonic Sensor offers a Cylindrical design, Transistor, PNP output, Connector , 4 -pin. Manufactured by Leuze under the Leuze Ultrasonic Sensor category, this model belongs to the 412B Series.
| Brand | Leuze |
| Product Type | Ultrasonic Sensor |
| Product | RKU318-800/4T-M12 |
Leuze RKU318-800/4T-M12 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M18 x 1 mm |
| Dimension | 18 mm x 60.3 mm |
| Operating range | 0 ... 0.8 m |
| Operating principle | Reflection principle |
| Ultrasonic frequency | 230 kHz |
| Opening angle | 8 Β° |
| Adjustment range | - |
| Resolution | < 2 mm |
| Supply voltage UB | 10 ... 30 V, DC |
| Number of Connections | - |
| Switching voltage | - |
| Switching output 1 | Transistor, PNP |
| Switching frequency | 5 Hz |
| Interface Type | - |
| Response time | 100ms |
| Connection 1 Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| No. of Pin | 4 -pin |
| Housing material | Plastic |
| Ambient temperature, operation | -20 ... 70 Β°C |
| Ambient temperature, storage | -20 ... 70 Β°C |
| Degree of protection | IP 67 |
Give Us a Call for Leuze 0.8m Reflection Ultrasonic Sensors RKU318-800/4T-M12 50136080 at the lowest pricing. In-depth Technical Analysis of RKU318-800/4T-M12 includes 18 mm x 60.3 mm Dimensions, 0 ... 0.8 m Operating Range, 230 kHz Ultrasonic Frequency, 8 Β° Opening Angle, Transistor, PNP Switching Output, Connector, M18 x 1 mm Thread size, 4 -pin, Plastic Housing material, IP 67 degree of protection. Elevate Your Project with a Quote for your requirement of Leuze 0.8m Reflection Ultrasonic Sensors. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
