During technical comparisons, RK46C-DXL3-4P-M12 appears alongside P&F Photo Sensor, Leuze Proximity Sensor and Leuze Ls5B Xx 200 M12 so engineers assess signal types, ingress protection, and ambient tolerances accurately.

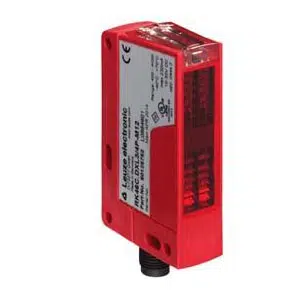

Leuze RK46C.DXL3/4P-M12 | 50125752
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | RK46C.DXL3/4P-M12 |
Leuze Polarized sensor with two digital switching outputs retro-reflective Sensor RK46C.DXL3/4P-M12 - 50125752 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of irregular objects on conveyor belt Detection of polybags on conveyor belt |
| Special version | Extra long light spot (XL) |
| Sensing Distance | 0.4 ... 4 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 250 Hz |
| Response time | 2 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Metal housing | PC-PBT |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 69K |
Get the Best RK46C.DXL3/4P-M12 Price β Contact IndMALL Automation Today!
IndMALL Automation offers the Leuze RK46C.DXL3/4P-M12 polarized retro-reflective sensor (Part No: 50125752) with two digital switching outputs at highly competitive prices. Access the RK46C.DXL3/4P-M12 datasheet (PDF) for detailed specifications, including its cubic design, reflection principle, and dimensions (20.5 mm x 76.3 mm x 44 mm). This sensor features an LED red light source, PNP transistor switching outputs (2), and a light switching principle. Designed to operate on a 10-30V DC supply voltage (including residual ripple), it offers a sensing distance of 0.4-4m with reflector TK(S) 100x100. The plastic housing and IP67/IP69K protection rating ensure durability in various industrial environments.
Request a quote today and secure the best RK46C.DXL3/4P-M12 price! Count on us for cost-effective pricing and superior support, outperforming other competitors.
