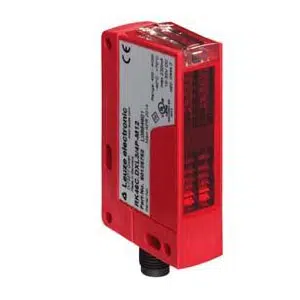

Leuze RK46C.DXL3/4P Photoelectric Sensor
The Leuze RK46C.DXL3/4P Photoelectric Sensor (Part No: 50125754 ) offers a Cubic design, Transistor, PNP output, PUR Cable 4 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | RK46C.DXL3/4P |
Leuze RK46C.DXL3/4P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of irregular objects on conveyor belt Detection of objects with openings Detection of stretch-wrapped objects |
| Special version | Extra long light spot (XL) |
| Sensing Distance | 0.4 ... 4 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 250 Hz |
| Response time | 2 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mmΒ² |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 69K |
IndMALL provides Leuze 46C Series retro-reflective photoelectric sensor RK46C.DXL3/4P part no: 50125754 at the lowest pricing. In-depth Technical Analysis of RK46C.DXL3/4P, 50125754 include Cubic, Design Reflection principle, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.4 ... 4 m, With reflector TK(S) 100x100 Sensing Distance, 4 -wire Number of conductors, Plastic Housing material, IP 67 / IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 46C Series retro-reflective photoelectric sensor. Capture the Best Deal with a Quote for your requirement of Leuze 46C Series retro-reflective photoelectric sensor. Our promise: More affordable pricing and more personalized support than other Dealers.
