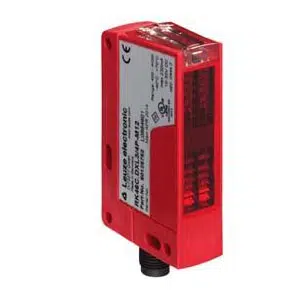

Leuze RK46C.DL3/2N-M12 | 50146330
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | RK46C.DL3/2N-M12 |
Leuze Pulsed Transmitted-signal shape retro-reflective photoelectric sensor RK46C.DL3/2N-M12 - 50146330 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of irregular objects on conveyor belt Detection of polybags on conveyor belt |
| Special version | Light-band |
| Sensing Distance | 0.55 ... 1.5 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, NPN |
| Switching principle | Dark switching |
| Switching frequency | 250 Hz |
| Response time | 2 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Metal housing | PC-PBT |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 69K |
Give Us a Call for Leuze Pulsed Transmitted-signal shape retro-reflective photoelectric sensor RK46C.DL3/2N-M12 part no: 50146330 at the lowest pricing. In-depth Technical Analysis of RK46C.DL3/2N-M12, 50146330 feature Cubic, Design Reflection principle, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.55 ... 1.5 m Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. Elevate Your Project with a Quote for your requirement of Leuze Pulsed Transmitted-signal shape retro-reflective photoelectric sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
