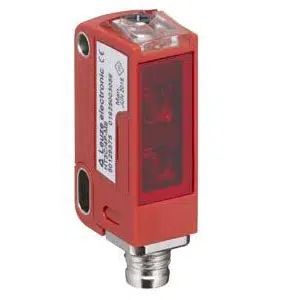

Leuze 0.02-6.5 m Operating range retro-reflective photoelectric sensor RK3C.1/6G-M8 - 50143655 Technical Specifications:
Specification
Value
Design
Cubic
Operating principle
Reflection principle
Application
Detection of highly transparent bottles
Detection of transparent films
Special version
-
Sensing Distance
0.02 ... 6.5 m, With reflector TK(S) 100x100
Beam path
-
Light source
LED, Red
Wavelength
633 nm
Type of light spot geometry
-
Supply voltage UB
10 ... 30 V, DC, Incl. residual ripple
Switching Output 1
Transistor, Push-pull
Switching principle
Light switching (PNP)/dark switching (NPN)
Switching Output 2
Transistor, Push-pull
Switching principle
Dark switching (PNP)/light switching (NPN)
Switching frequency
1,500 Hz
Response time
0.33 ms
Function
Signal OUT
Voltage supply
Type of connection
Connector
Thread size
M8
Type
Male
Material
Metal
No. of pins
4 -pin
Encoding
-
Dimension (W x H x L)
11.4 mm x 34.2 mm x 18.3 mm
Housing material
Plastic
Metal housing
PC-ABS
Lens cover material
Plastic
Housing color
Red
Type of display
LED
Operational controls
270Β° potentiometer
Ambient temperature, operation
-40 ... 60 Β°C
Ambient temperature, storage
-40 ... 70 Β°C
Degree of protection
IP 67 IP 69K
IndMALL Automation Dealing offers Leuze 0.02-6.5 m Operating range retro-reflective photoelectric sensor RK3C.1/6G-M8 part no: 50143655 at attractive prices. Key Technical Features of RK3C.1/6G-M8, 50143655 are Cubic, Design Reflection principle, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, Light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 6.5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 IP 69K degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 0.02-6.5 m Operating range retro-reflective photoelectric sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
