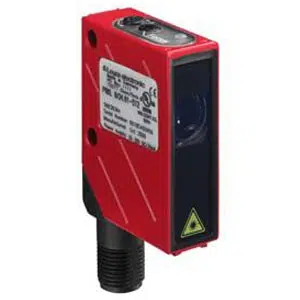

Leuze PRKL 8/24.99-S12 | 50115689
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRKL 8/24.99-S12 |
Leuze 12 m operating range retro-reflective photoelectric sensor PRKL 8/24.99-S12 - 50115689 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | Autocollimation |
| Sensing Distance | 0 ... 12 m |
| Beam path | - |
| Light source | Laser, Red |
| Wavelength | 670 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, NPN |
| Switching principle | Light switching |
| Switching frequency | 2,800 Hz |
| Response time | 0.18 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector, Turning, 90Β° |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 48 mm x 38 mm |
| Housing material | Metal |
| Metal housing | Zinc |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -10 ... 40 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 69K |
Get A Quote for Leuze 12 m operating range retro-reflective photoelectric sensor PRKL 8/24.99-S12 part no: 50115689 at the best price. Here are the brief Technical Specifications of PRKL 8/24.99-S12, 50115689 are Cubic, Design Reflection principle, 15 mm x 48 mm x 38 mm Dimension, Laser, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0 ... 12 m Sensing Distance, 5 -pin No. of pins, Metal Housing material, IP 67 / IP 69K degree of protection. It's Time to get a Quote for your requirement of Leuze 12 m operating range retro-reflective photoelectric sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
