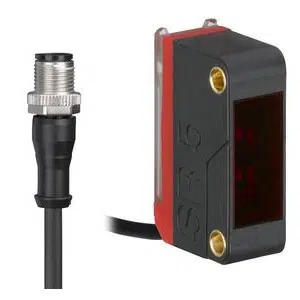

Leuze PRK5B/NX-200-M12 Photoelectric Sensor
The Leuze PRK5B/NX-200-M12 Photoelectric Sensor (Part No: 50149737 ) offers a Cubic design, Transistor, NPN output, PVC Cable with connector. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK5B/NX-200-M12 |
Leuze PRK5B/NX-200-M12 Photoelectric Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Dark switching (light switching by reversing polarity of UB) |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.14 mmยฒ |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 11 mm x 32.4 mm x 20 mm |
| Housing material | Plastic |
| Stainless steel housing | PC-ABS |
| Lens cover material | Plastic |
| Housing color | Black Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 ยฐC |
| Ambient temperature, storage | -40 ... 70 ยฐC |
| Degree of protection | IP 67 |
IndMALL Automation Dealing offers Leuze male wire cross section of 0.2 mmยฒ retro-reflective photoelectric sensor PRK5B/NX-200-M12 part no: 50149737 at attractive prices. Key Technical Features of PRK5B/NX-200-M12, 50149737 are Cubic, Design Reflection principle, 11 mm x 32.4 mm x 20 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Dark switching
(light switching by reversing polarity of UB) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze male wire cross section of 0.2 mmยฒ retro-reflective photoelectric sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
