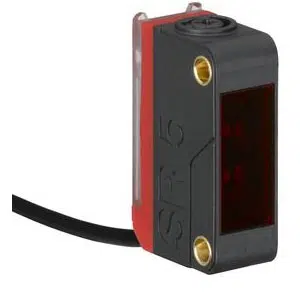

Leuze PRK5B/N Photoelectric Sensor
The Leuze PRK5B/N Photoelectric Sensor (Part No: 50145243 ) offers a Cubic design, Transistor, NPN output, PVC Cable 3 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK5B/N |
Leuze PRK5B/N Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.02 ... 5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Dark switching (light switching by reversing polarity of UB) |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.14 mmΒ² |
| Dimension (W x H x L) | 11 mm x 32.4 mm x 20 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | Black Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Send Your Inquiry for Leuze 2000 mm cable connection, Transistor NPN switching output retro-reflective sensor PRK5B/N part no: 50145243 at affordable rates. Core System Specifications of PRK5B/N, 50145243 are Cubic, Design Reflection principle, 11 mm x 32.4 mm x 20 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Dark switching (light switching by reversing polarity of UB) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 5 m, With reflector TK(S) 100x100 Sensing Distance, 3 -wire Number of conductors, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 2000 mm cable connection, Transistor NPN switching output retro-reflective sensor. Initiate Your Journey with a Quote for your requirement of Leuze 2000 mm cable connection, Transistor NPN switching output retro-reflective sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Suppliers & Traders.
