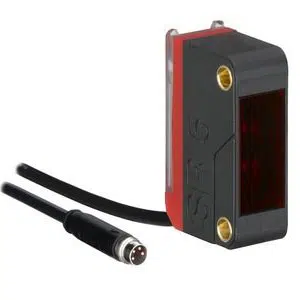

Leuze PRK5B/4X-200-M8 Photoelectric Sensor
The Leuze PRK5B/4X-200-M8 Photoelectric Sensor (Part No: 50145251 ) offers a Cubic design, Transistor, PNP output, PVC Cable with connector. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK5B/4X-200-M8 |
Leuze PRK5B/4X-200-M8 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching (dark switching by reversing polarity of UB) |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.2 mmΒ² |
| Thread size | M8 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | - |
| Dimension (W x H x L) | 11 mm x 32.4 mm x 20 mm |
| Housing material | Plastic |
| Stainless steel housing | PC-ABS |
| Lens cover material | Plastic |
| Housing color | Black Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Talk to Our Engineer for Leuze M8, 3 -wire Cable with connector retro-reflective sensor PRK5B/4X-200-M8 part no: 50145251 with exclusive offers. Core System Specifications of PRK5B/4X-200-M8, 50145251 are Cubic, Design Reflection principle, 11 mm x 32.4 mm x 20 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching
(dark switching by reversing polarity of UB) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze M8, 3 -wire Cable with connector retro-reflective sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
