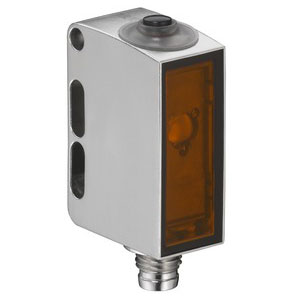

Leuze PRK55CL1.A3/LG-M8 | 50148196
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK55CL1.A3/LG-M8 |
Leuze 2 m operating range retro-reflective photoelectric sensors PRK55CL1.A3/LG-M8 - 50148196 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | Autocollimation Wash-Down design |
| Sensing Distance | 0 ... 2 m, With reflector MTKS 50x50.1 |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 650 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 3,000 Hz |
| Response time | 0.17 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 4 -pin |
| Encoding | - |
| Dimension (W x H x L) | 14 mm x 35.4 mm x 25 mm |
| Housing material | Stainless steel |
| Metal housing | AISI 316L, DIN X2CrNiMo17132, W.No1.4404 |
| Lens cover material | Plastic (PMMA+) with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 70 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67/IP 68/IP 69K |
The Leuze PRK55CL1.A3/LG-M8 Photoelectric Sensor stands out for its autocollimation retro-reflective design, engineered specifically to detect highly transparent targets such as glass bottles, plastic films, and PET containers. With a sensing range of up to 2 meters when paired with a reflector (MTKS 50x50.1), this photoelectric sensor ensures stable operation even in challenging conditions. It operates on the reflection principle using a high-visibility red laser at 650 nm wavelength, delivering fast and accurate detection with a response time of just 0.17 ms and a switching frequency of 3,000 Hz.
The sensor features a compact cubic housing (14 mm x 35.4 mm x 25 mm) made of AISI 316L stainless steel, known for its corrosion resistance in harsh washdown and hygiene-sensitive environments. The lens is protected by a scratch-resistant PMMA+ cover with indium coating, and it comes equipped with an M8 4-pin male connector for secure and simple installation. With push-pull transistor outputs supporting both light switching (PNP) and dark switching (NPN) modes, along with IO-Link communication, it offers integration flexibility with modern control systems. An intuitive teach button and LED status display simplify on-site commissioning. Its operating voltage spans from 10 to 30 V DC, with full protection ratings of IP67, IP68, and IP69K, making it ideal for environments with water jets, dust, or chemical exposure.
The Leuze PRK55CL1.A3/LG-M8 Photoelectric Sensor is a preferred solution for detecting transparent objects in high-speed bottling, beverage packaging, and pharmaceutical production lines. In these environments, conventional sensors often fail due to background reflections or target invisibility. This model, with its autocollimation laser optics, ensures pinpoint accuracy even when the product is curved, wet, or vibrating on conveyors.
Maintenance engineers working in Indian industries like FMCG, dairy, or chemical manufacturing trust this sensor for its consistent performance and ease of configuration. The combination of fast switching time, rugged steel housing, and simple teach-in functionality reduces machine downtime and setup effort. Whether you're retrofitting an older line or designing a new automation cell, the PRK55CL1.A3/LG-M8 ensures that your sensors are never the bottleneck.
If you're evaluating options for reliable transparent object detection, the Leuze PRK55CL1.A3/LG-M8 Photoelectric Sensor offers a proven combination of speed, durability, and intelligence that engineers can count on. View full specifications on Leuzeβs official product page.
