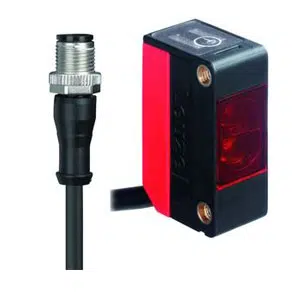

Leuze PRK5.M3/4P-200-M12 | 50146151
Technical Specifications of Leuze PRK5.M3/4P-200-M12 50146151:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
| Light Source | LED, Red |
Leuze cable with M12 connector and two transistor PNP output retro-reflective sensor PRK5.M3/4P-200-M12 - 50146151 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of bottle container Detection of semi-transparent media |
| Special version | - |
| Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mm² |
| Thread size | M8 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 14 mm x 32.5 mm x 20.2 mm |
| Housing material | Plastic |
| Stainless steel housing | ABS |
| Lens cover material | Plastic |
| Housing color | Black Red |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
Please speak to our Technical Engineer for Leuze cable with M12 connector and two transistor PNP output retro-reflective sensor PRK5.M3/4P-200-M12 part no: 50146151 at attractive prices. Technical Specs Summary of PRK5.M3/4P-200-M12, 50146151 includes Cubic, Design Reflection principle, 14 mm x 32.5 mm x 20.2 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze cable with M12 connector and two transistor PNP output retro-reflective sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
