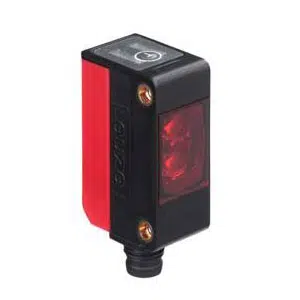

Leuze PRK5.M3/2N-M8 | 50128202
Technical Specifications of Leuze PRK5.M3/2N-M8 50128202:
Spec | Value |
---|---|
Design | Cubic |
Operating Principle | Reflection principle |
Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
Light Source | LED, Red |
Leuze Male connector and four pins retro-reflective photoelectric sensor PRK5.M3/2N-M8 - 50128202 Technical Specifications:
Specification | Value |
---|---|
Design | Cubic |
Operating principle | Reflection principle |
Application | Detection of bottle container Detection of semi-transparent media |
Special version | - |
Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
Beam path | - |
Light source | LED, Red |
Wavelength | 620 nm |
Type of light spot geometry | - |
Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
Switching Output 1 | Transistor, NPN |
Switching principle | Light switching |
Switching Output 2 | Transistor, NPN |
Switching principle | Dark switching |
Switching frequency | 500 Hz |
Response time | 1 ms |
Function | Signal OUT Voltage supply |
Type of connection | Connector |
Thread size | M8 |
Type | Male |
Material | Plastic |
No. of pins | 4 -pin |
Encoding | - |
Dimension (W x H x L) | 14 mm x 32.5 mm x 20.2 mm |
Housing material | Plastic |
Metal housing | ABS |
Lens cover material | Plastic |
Housing color | Black Red |
Type of display | LED |
Operational controls | Teach button |
Ambient temperature, operation | -40 ... 60 °C |
Ambient temperature, storage | -40 ... 70 °C |
Degree of protection | IP 67 |
Talk to Our Engineer for Leuze Male connector and four pins retro-reflective photoelectric sensor PRK5.M3/2N-M8 part no: 50128202 with exclusive offers. Core System Specifications of PRK5.M3/2N-M8, 50128202 are Cubic, Design Reflection principle, 14 mm x 32.5 mm x 20.2 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze Male connector and four pins retro-reflective photoelectric sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
