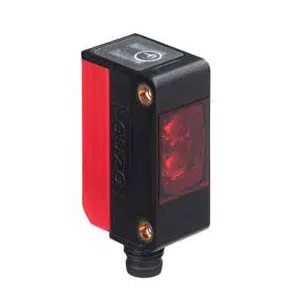

Leuze PRK5/4X-M8 | 50132598
Technical Specifications of Leuze PRK5/4X-M8 50132598:
Spec | Value |
---|---|
Design | Cubic |
Operating Principle | Reflection principle |
Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
Light Source | LED, Red |
Leuze M8 connector and four pins retro-reflective photoelectric sensor PRK5/4X-M8 - 50132598 Technical Specifications:
Specification | Value |
---|---|
Design | Cubic |
Operating principle | Reflection principle |
Application | - |
Special version | - |
Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
Beam path | - |
Light source | LED, Red |
Wavelength | 620 nm |
Type of light spot geometry | - |
Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
Switching Output 1 | Transistor, NPN |
Switching principle | Light switching |
Switching Output 2 | - |
Switching principle | - |
Switching frequency | 500 Hz |
Response time | 1 ms |
Function | Signal OUT Voltage supply |
Type of connection | Connector |
Thread size | M8 |
Type | Male |
Material | Plastic |
No. of pins | 4 -pin |
Encoding | - |
Dimension (W x H x L) | 14 mm x 32.5 mm x 20.2 mm |
Housing material | Plastic |
Metal housing | ABS |
Lens cover material | Plastic |
Housing color | Black Red |
Type of display | LED |
Operational controls | - |
Ambient temperature, operation | -40 ... 60 °C |
Ambient temperature, storage | -40 ... 70 °C |
Degree of protection | IP 67 |
Obtain a Quote for Leuze M8 connector and four pins retro-reflective photoelectric sensor PRK5/4X-M8 part no: 50132598 at economical prices. Specifications Overview for PRK5/4X-M8, 50132598 reveals Cubic, Design Reflection principle, 14 mm x 32.5 mm x 20.2 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze M8 connector and four pins retro-reflective photoelectric sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
