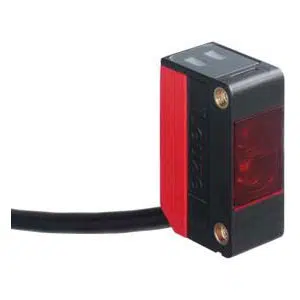

Leuze PRK5/4X-200-M8.1 | 50122066
Technical Specifications of Leuze PRK5/4X-200-M8.1 50122066:
Spec | Value |
---|---|
Design | Cubic |
Operating Principle | Reflection principle |
Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
Light Source | LED, Red |
Leuze response time of 1 ms and polarity reversal protection retro-reflective sensor PRK5/4X-200-M8.1 - 50122066 Technical Specifications:
Specification | Value |
---|---|
Design | Cubic |
Operating principle | Reflection principle |
Application | - |
Special version | - |
Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
Beam path | - |
Light source | LED, Red |
Wavelength | 620 nm |
Type of light spot geometry | - |
Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
Switching Output 1 | Transistor, PNP |
Switching principle | Light switching |
Switching Output 2 | - |
Switching principle | - |
Switching frequency | 500 Hz |
Response time | 1 ms |
Function | Signal OUT Voltage supply |
Type of connection | Cable with connector |
Cable length | 200 mm |
Sheathing material | PUR |
Cable color | Black |
Number of conductors | - |
Wire cross section | 0.2 mm² |
Thread size | Snap-in, M8 |
Type | Male |
Material | Plastic |
No. of pins | 4 -pin |
Encoding | - |
Dimension (W x H x L) | 14 mm x 32.5 mm x 20.2 mm |
Housing material | Plastic |
Stainless steel housing | ABS |
Lens cover material | Plastic |
Housing color | Black Red |
Type of display | LED |
Operational controls | - |
Ambient temperature, operation | -40 ... 60 °C |
Ambient temperature, storage | -40 ... 70 °C |
Degree of protection | IP 67 |
IndMALL Automation Dealing offers Leuze response time of 1 ms and polarity reversal protection retro-reflective sensor PRK5/4X-200-M8.1 part no: 50122066 at attractive prices. Key Technical Features of PRK5/4X-200-M8.1, 50122066 are Cubic, Design Reflection principle, 14 mm x 32.5 mm x 20.2 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze response time of 1 ms and polarity reversal protection retro-reflective sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
