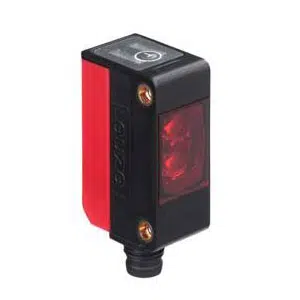

Leuze PRK5/2-M8.3 | 50134580
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK5/2-M8.3 |
Leuze 1 ms response time and 300 ms readiness delay retro-reflective sensor PRK5/2-M8.3 - 50134580 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Plastic |
| No. of pins | 3 -pin |
| Encoding | - |
| Dimension (W x H x L) | 14 mm x 32.5 mm x 20.2 mm |
| Housing material | Plastic |
| Metal housing | ABS |
| Lens cover material | Plastic |
| Housing color | Black Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Ask for the Pricing of Leuze 1 ms response time and 300 ms readiness delay retro-reflective sensor PRK5/2-M8.3 part no: 50134580 at unbeatable prices. Detailed Specifications of PRK5/2-M8.3, 50134580 feature Cubic, Design Reflection principle, 14 mm x 32.5 mm x 20.2 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 3 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 1 ms response time and 300 ms readiness delay retro-reflective sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
