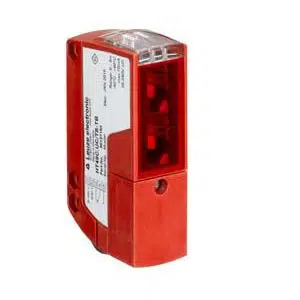

Leuze PRK49C.UCH/M4-TB Photoelectric Sensor
The Leuze PRK49C.UCH/M4-TB photoelectric sensor uses retro-reflective detection and supports 0.1 to 24 m sensing distance with reflector installed. This PRK49C.UCH/M4-TB Leuze 150 Switching frequency retro-reflective photoelectric sensor from Leuze is a Photoelectric Sensor in the 96 Series, operating with 630 nm red LED, offering MOSFET normally open output, supporting 150 Hz switching frequency, and providing IP67 protection through a spring-cage terminal connection.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK49C.UCH/M4-TB |
Leuze PRK49C.UCH/M4-TB Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Special version | Heating |
| Sensing Distance | 0.1 ... 24 m, With reflector TK(S) 100x100 |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 630 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | MOSFET semiconductor, NO (normally open) |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 150 Hz |
| Response time | 3.3 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Terminal |
| Type of terminal | Spring-cage terminal |
| No. of pins | 5 -pin |
| Dimension (W x H x L) | 31 mm x 104 mm x 55.5 mm |
| Housing material | Plastic |
| Metal housing | PC |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
The PRK49C.UCH/M4-TB Leuze 150 Switching frequency retro-reflective photoelectric sensor is a Leuze photoelectric sensor designed for long-range detection in industrial automation systems. The PRK49C.UCH/M4-TB operates using the reflection principle and supports a 0.1 to 24 m sensing distance with a reflector. It uses a 630 nm red LED and provides a MOSFET normally open switching output with a 150 Hz switching frequency. This model belongs to the 96 Series.
In industrial applications, the PRK49C.UCH/M4-TB photoelectric sensor is used on conveyors, packaging machines, automated assembly lines, and material handling systems. Retro-reflective sensing enables consistent object detection over long distances. MOSFET semiconductor output supports stable switching in control circuits, while the integrated heating version supports operation in challenging environments. Spring-cage terminal wiring allows secure installation inside panels and machine housings.
The Leuze PRK49C.UCH/M4-TB photoelectric sensor supports dependable operation under demanding industrial conditions. With IP67 protection, controlled response behavior, and a wide operating temperature range, the PRK49C.UCH/M4-TB is suitable for continuous automation use. As part of the Leuze 96 Series, it aligns with established industrial sensing standards and ensures long-term reliability for retro-reflective photoelectric sensor applications.
