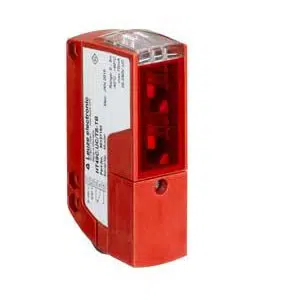

Leuze PRK49C.UC1/M4 Photoelectric Sensor
The Leuze PRK49C.UC1/M4 Photoelectric Sensor (Part No: 50127424 ) offers a Cubic design, MOSFET semiconductor, NO (normally open) output, PVC Cable 5 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK49C.UC1/M4 |
Leuze PRK49C.UC1/M4 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.3 ... 24 m, With reflector TK(S) 100x100 |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 630 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 20 ... 250 V, AC/DC |
| Switching Output 1 | MOSFET semiconductor, NO (normally open) |
| Switching principle | Light/dark switchable |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 150 Hz |
| Response time | 3.3 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 5 -wire |
| Wire cross section | 0.34 mm² |
| Dimension (W x H x L) | 31 mm x 104 mm x 55.5 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Operational controls | 270° potentiometer Teach button |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
Reach Us by Email for Leuze 1.5 V·A Power consumption (with AC)retro-reflective photoelectric sensor PRK49C.UC1/M4 part no: 50127424 at attractive prices. In-depth Technical Analysis of PRK49C.UC1/M4, 50127424 feature Cubic, Design Reflection principle, 31 mm x 104 mm x 55.5 mm Dimension, LED, Red Light source, MOSFET semiconductor, NO (normally open) Switching Outputs 1, Light/dark switchable Switching principle, 20 ... 250 V, AC/DC Supply voltage UB, 0.3 ... 24 m, With reflector TK(S) 100x100 Sensing Distance, 5 -wire Number of conductors, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 1.5 V·A Power consumption (with AC)retro-reflective photoelectric sensor. Now's the Time to Secure a Quote for your requirement of Leuze 1.5 V·A Power consumption (with AC)retro-reflective photoelectric sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
