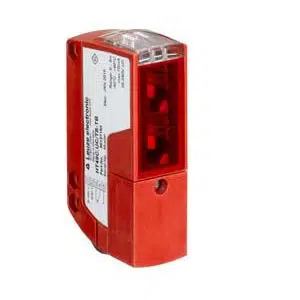

Leuze PRK49C.UC/TS-TB Photoelectric Sensor
The Leuze PRK49C.UC/TS-TB Photoelectric Sensor (Part No: Leuze 2 output, terminal connection retro-reflective photoelectric sensor ) offers a Cubic design, Relay, NC output, Spring-cage terminal, 5 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the 96 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK49C.UC/TS-TB |
Leuze PRK49C.UC/TS-TB Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Special version | - |
| Sensing Distance | 0.1 ... 24 m, With reflector TK(S) 100x100 |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 630 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Relay, NC |
| Switching principle | Light/dark switchable |
| Switching Output 2 | Relay, NO |
| Switching principle | Light/dark switchable |
| Switching frequency | 25 Hz |
| Response time | 20 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Terminal |
| Type of terminal | Spring-cage terminal |
| No. of pins | 5 -pin |
| Dimension (W x H x L) | 31 mm x 104 mm x 55.5 mm |
| Housing material | Plastic |
| Metal housing | PC |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Ask for the Pricing of Leuze 2 output, terminal connection retro-reflective photoelectric sensor PRK49C.UC/TS-TB part no: 50127422 at unbeatable prices. Detailed Specifications of PRK49C.UC/TS-TB, 50127422 feature Cubic, Design Reflection principle, 31 mm x 104 mm x 55.5 mm Dimension, LED, Red Light source, Relay, NC Switching Outputs 1, Light/dark switchable Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.1 ... 24 m, With reflector TK(S) 100x100 Sensing Distance, Terminal Type of connection, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 2 output, terminal connection retro-reflective photoelectric sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
