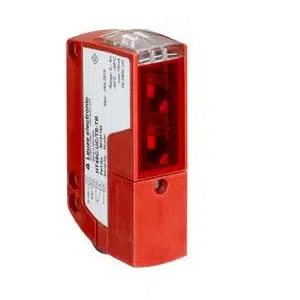

Leuze PRK49C.UC/M4-TB Photoelectric Sensor
The Leuze PRK49C.UC/M4-TB Photoelectric Sensor (Part No: Leuze 3.3 ms Response time retro-reflective photoelectric sensor ) offers a Cubic design, MOSFET semiconductor, NO (normally open) output, Spring-cage terminal, 5 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the 96 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK49C.UC/M4-TB |
Leuze PRK49C.UC/M4-TB Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Special version | - |
| Sensing Distance | 0.1 ... 24 m, With reflector TK(S) 100x100 |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 630 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | MOSFET semiconductor, NO (normally open) |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 150 Hz |
| Response time | 3.3 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Terminal |
| Type of terminal | Spring-cage terminal |
| No. of pins | 5 -pin |
| Dimension (W x H x L) | 31 mm x 104 mm x 55.5 mm |
| Housing material | Plastic |
| Metal housing | PC |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Please speak to our Technical Engineer for Leuze 3.3 ms Response time retro-reflective photoelectric sensor PRK49C.UC/M4-TB part no: 50127425 at attractive prices. Technical Specs Summary of PRK49C.UC/M4-TB, 50127425 includes Cubic, Design Reflection principle, 31 mm x 104 mm x 55.5 mm Dimension, LED, Red Light source, MOSFET semiconductor, NO (normally open) Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.1 ... 24 m, With reflector TK(S) 100x100 Sensing Distance, Terminal Type of connection, Plastic Housing material, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze 3.3 ms Response time retro-reflective photoelectric sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
