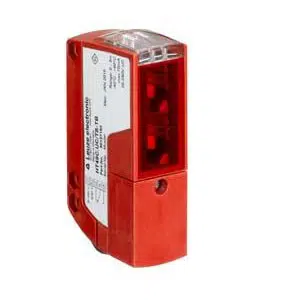

Leuze PRK49C.1/2N-TB Photoelectric Sensor
The Leuze PRK49C.1/2N-TB Photoelectric Sensor (Part No: Leuze Spring-cage terminal, 5-pin retro-reflective photoelectric sensor ) offers a Cubic design, Transistor, NPN output, Spring-cage terminal, 5 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the 96 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK49C.1/2N-TB |
Leuze PRK49C.1/2N-TB Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Special version | - |
| Sensing Distance | 0.1 ... 24 m, With reflector TK(S) 100x100 |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 630 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, NPN |
| Switching principle | Dark switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Terminal |
| Type of terminal | Spring-cage terminal |
| No. of pins | 5 -pin |
| Dimension (W x H x L) | 31 mm x 104 mm x 55.5 mm |
| Housing material | Plastic |
| Metal housing | PC |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Operational controls | 270Β° potentiometer Teach button |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Reach Us by Email for Leuze Spring-cage terminal, 5-pin retro-reflective photoelectric sensor PRK49C.1/2N-TB part no: 50134448 at attractive prices. In-depth Technical Analysis of PRK49C.1/2N-TB, 50134448 feature Cubic, Design Reflection principle, 31 mm x 104 mm x 55.5 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.1 ... 24 m, With reflector TK(S) 100x100 Sensing Distance, Terminal Type of connection, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze Spring-cage terminal, 5-pin retro-reflective photoelectric sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
