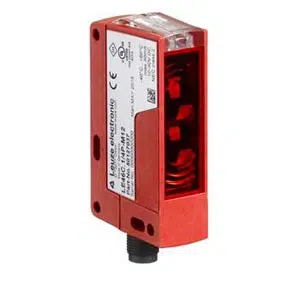

Leuze operating range 0.1–20 meters and red LED light source retro-reflective sensor PRK46C.D1/PX-M12 - 50127028 Technical Specifications:
Specification
Value
Design
Cubic
Operating principle
Reflection principle
Application
Detection of stretch-wrapped objects
Special version
AS-Interface, connection via coupling module
Sensing Distance
0.1 ... 16 m, With reflector TK(S) 100x100
Beam path
-
Light source
LED, Red
Wavelength
630 nm
Type of light spot geometry
-
Supply voltage UB
10 ... 30 V, DC, Incl. residual ripple
Switching Output 1
Transistor, PNP
Switching principle
Dark switching
Switching Output 2
-
Switching principle
-
Switching frequency
500 Hz
Response time
1 ms
Function
Signal OUT
Voltage supply
Type of connection
Connector
Thread size
M12
Type
Male
Material
Plastic
No. of pins
4 -pin
Encoding
A-coded
Dimension (W x H x L)
20.5 mm x 76.3 mm x 44 mm
Housing material
Plastic
Metal housing
PC-PBT
Lens cover material
Plastic / PMMA
Housing color
Red
Type of display
LED
Operational controls
270° potentiometer
Ambient temperature, operation
-40 ... 60 °C
Ambient temperature, storage
-40 ... 70 °C
Degree of protection
IP 67 / IP 69K
Call us for Leuze operating range 0.1–20 meters and red LED light source retro-reflective sensor PRK46C.D1/PX-M12 part no: 50127028 at the best rates. Technical Attributes of PRK46C.D1/PX-M12, 50127028 are Cubic, Design Reflection principle, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Dark switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.1 ... 16 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze operating range 0.1–20 meters and red LED light source retro-reflective sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
