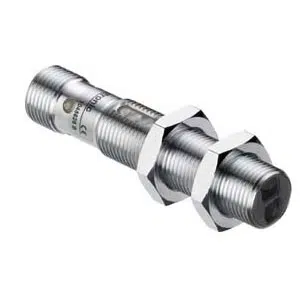

Leuze PRK412B/NX-M12 | 50140147
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK412B/NX-M12 |
Leuze 0.02β1.8 m operating range limit retro-reflective sensor PRK412B/NX-M12 - 50140147 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.02 ... 1.8 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 36 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Dark switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | - |
| Material | Metal |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 12 mm x 60 mm |
| Housing material | Metal |
| Metal housing | Chromed brass |
| Lens cover material | Glass |
| Housing color | Silver |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -25 ... 55 Β°C |
| Ambient temperature, storage | - |
| Degree of protection | IP 67 |
IndMALL Automation Dealing offers Leuze 0.02β1.8 m operating range limit retro-reflective sensor PRK412B/NX-M12 part no: 50140147 at attractive prices. Key Technical Features of PRK412B/NX-M12, 50140147 are Cylindrical, Design Reflection principle, 12 mm x 60 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Dark switching Switching principle, 10 ... 36 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 1.8 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Metal Housing material, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 0.02β1.8 m operating range limit retro-reflective sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
