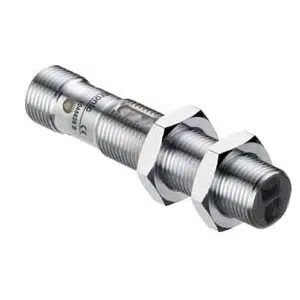

Leuze PRK412B/4X-M12 | 50140142
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK412B/4X-M12 |
Leuze one digital output and a cylinder housing retro-reflective sensor PRK412B/4X-M12 - 50140142 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.02 ... 1.8 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 36 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | - |
| Material | Metal |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 12 mm x 60 mm |
| Housing material | Metal |
| Metal housing | Chromed brass |
| Lens cover material | Glass |
| Housing color | Silver |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -25 ... 55 Β°C |
| Ambient temperature, storage | - |
| Degree of protection | IP 67 |
Obtain a Quote for Leuze one digital output and a cylinder housing retro-reflective sensor PRK412B/4X-M12 part no: 50140142 at economical prices. Specifications Overview for PRK412B/4X-M12, 50140142 reveals Cylindrical, Design Reflection principle, 12 mm x 60 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 36 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 1.8 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Metal Housing material, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze one digital output and a cylinder housing retro-reflective sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
