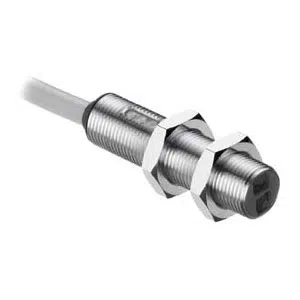

Leuze PRK412B/4 Photoelectric Sensor
The Leuze PRK412B/4 Photoelectric Sensor (Part No: 50140144 ) offers a Cylindrical design, Transistor, PNP output, PVC Cable 3 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK412B/4 |
Leuze PRK412B/4 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.02 ... 1.8 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.34 mmΒ² |
| Dimension (W x H x L) | 12 mm x 51 mm |
| Housing material | Metal |
| Lens cover material | Chromed brass |
| Housing color | Silver |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -25 ... 55 Β°C |
| Ambient temperature, storage | - |
| Degree of protection | IP 67 |
Mail us for Leuze three pins and A-coded encoding retro-reflective sensor PRK412B/4 part no: 50140144 with budget-friendly prices. Technical Details of PRK412B/4, 50140144 are Cylindrical, Design Reflection principle, 12 mm x 51 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 1.8 m, With reflector TK(S) 100x100 Sensing Distance, 3 -wire Number of conductors, Metal Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze three pins and A-coded encoding retro-reflective sensor. Elevate Your Project with a Quote for your requirement of Leuze three pins and A-coded encoding retro-reflective sensor. Rest assured, our pricing and support outshine other Suppliers.
