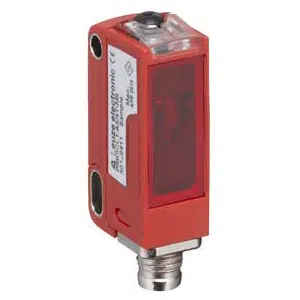

Leuze PRK3CL1.T3/4P-M8 | 50133697
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK3CL1.T3/4P-M8 |
Leuze operating range 0.4 m and two outputs retro-reflective photoelectric sensor PRK3CL1.T3/4P-M8 - 50133697 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of highly transparent bottles Detection of transparent films |
| Special version | Autocollimation |
| Sensing Distance | 0 ... 0.4 m |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 655 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 3,000 Hz |
| Response time | 0.17 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Encoding | - |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Metal housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 55 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 IP 69K |
Get A Quote for Leuze operating range 0.4 m and two outputs retro-reflective photoelectric sensor PRK3CL1.T3/4P-M8 part no: 50133697 at the best price. Here are the brief Technical Specifications of PRK3CL1.T3/4P-M8, 50133697 are Cubic, Design Reflection principle, 11.4 mm x 34.2 mm x 18.3 mm Dimension, Laser, Red Light source, Transistor, PNP Switching Outputs 1, Dark switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 0.4 m Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 IP 69K degree of protection. It's Time to get a Quote for your requirement of Leuze operating range 0.4 m and two outputs retro-reflective photoelectric sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
