Detection of highly transparent bottles
Detection of transparent films
Special version
Autocollimation
Sensing Distance
0 ... 0.4 m
Beam path
Collimated
Light source
Laser, Red
Wavelength
655 nm
Type of light spot geometry
Round
Supply voltage UB
10 ... 30 V, DC, Incl. residual ripple
Switching Output 1
Transistor, PNP
Switching principle
Light switching
Switching Output 2
-
Switching principle
-
Switching frequency
3,000 Hz
Response time
0.17 ms
Function
Signal OUT
Voltage supply
Type of connection
Connector
Thread size
M8
Type
Male
Material
Metal
No. of pins
3 -pin
Encoding
-
Dimension (W x H x L)
11.4 mm x 34.2 mm x 18.3 mm
Housing material
Plastic
Metal housing
PC-ABS
Lens cover material
Plastic / PMMA
Housing color
Red
Type of display
LED
Operational controls
Teach button
Ambient temperature, operation
-40 ... 55 Β°C
Ambient temperature, storage
-40 ... 70 Β°C
Degree of protection
IP 67 IP 69K

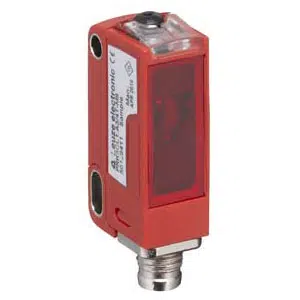

IndMALL Automation Dealing offers Leuze Sensitivity adjustment with teach-in retro-reflective photoelectric sensor PRK3CL1.T3/4-M8.3 part no: 50133698 at attractive prices. Key Technical Features of PRK3CL1.T3/4-M8.3, 50133698 are Cubic, Design Reflection principle, 11.4 mm x 34.2 mm x 18.3 mm Dimension, Laser, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 0.4 m Sensing Distance, 3 -pin No. of pins, Plastic Housing material, IP 67 IP 69K degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze Sensitivity adjustment with teach-in retro-reflective photoelectric sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
