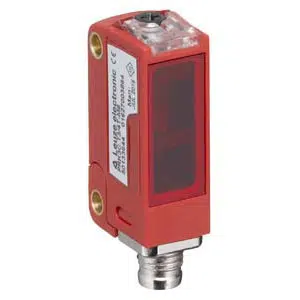

Leuze 3000 Hz switching frequency and 0.17 ms response time retro-reflective sensor PRK3CL1.BA3/4T-M8 - 50133747 Technical Specifications:
Specification
Value
Design
Cubic
Operating principle
Reflection principle
Application
-
Special version
Autocollimation
Teach input
Sensing Distance
0 ... 2 m, With reflector MTKS 50x50.1
Beam path
Collimated
Light source
Laser, Red
Wavelength
655 nm
Type of light spot geometry
Round
Supply voltage UB
10 ... 30 V, DC, Incl. residual ripple
Switching Output 1
Transistor, PNP
Switching principle
Light switching
Switching Output 2
-
Switching principle
-
Switching frequency
3,000 Hz
Response time
0.17 ms
Function
Signal IN
Signal OUT
Voltage supply
Type of connection
Connector
Thread size
M8
Type
Male
Material
Metal
No. of pins
4 -pin
Encoding
-
Dimension (W x H x L)
11.4 mm x 34.2 mm x 18.3 mm
Housing material
Plastic
Metal housing
PC-ABS
Lens cover material
Plastic / PMMA
Housing color
Red
Type of display
LED
Operational controls
Teach button
Ambient temperature, operation
-40 ... 55 Β°C
Ambient temperature, storage
-40 ... 70 Β°C
Degree of protection
IP 67 / IP 69K
Give Us a Call for Leuze 3000 Hz switching frequency and 0.17 ms response time retro-reflective sensor PRK3CL1.BA3/4T-M8 part no: 50133747 at the lowest pricing. In-depth Technical Analysis of PRK3CL1.BA3/4T-M8, 50133747 feature Cubic, Design Reflection principle, 11.4 mm x 34.2 mm x 18.3 mm Dimension, Laser, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 2 m, With reflector MTKS 50x50.1 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. Elevate Your Project with a Quote for your requirement of Leuze 3000 Hz switching frequency and 0.17 ms response time retro-reflective sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
