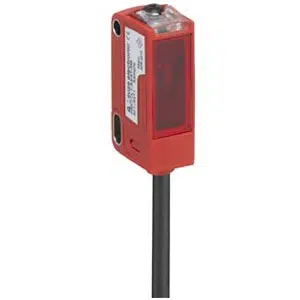

Leuze PRK3CL1.A3/4T Photoelectric Sensor
The Leuze PRK3CL1.A3/4T Photoelectric Sensor (Part No: 50129412 ) offers a Cubic design, Transistor, PNP output, PUR Cable 4 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK3CL1.A3/4T |
Leuze PRK3CL1.A3/4T Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | Autocollimation Teach input |
| Sensing Distance | 0 ... 2 m, With reflector MTKS 50x50.1 |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 655 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 3,000 Hz |
| Response time | 0.17 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mm² |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 55 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
Ask for the Pricing of Leuze polarized retro-reflective photoelectric sensor 2,000 mm black cable PRK3CL1.A3/4T part no: 50129412 at unbeatable prices. Detailed Specifications of PRK3CL1.A3/4T, 50129412 feature Cubic, Design Reflection principle, 11.4 mm x 34.2 mm x 18.3 mm Dimension, Laser, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 2 m, With reflector MTKS 50x50.1 Sensing Distance, 4 -wire Number of conductors, Plastic Housing material, IP 67 / IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze polarized retro-reflective photoelectric sensor 2,000 mm black cable. It's Time to get a Quote for your requirement of Leuze polarized retro-reflective photoelectric sensor 2,000 mm black cable. We guarantee unmatched pricing and unparalleled support compared to other Dealers.
