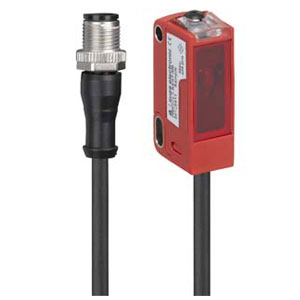

Leuze PRK3C.TT3/4T-200-M12 Photoelectric Sensor
The Leuze PRK3C.TT3/4T-200-M12 Photoelectric Sensor (Part No: 50129409 ) offers a Cubic design, Transistor, PNP output, PUR Cable with connector. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK3C.TT3/4T-200-M12 |
Leuze PRK3C.TT3/4T-200-M12 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of highly transparent bottles Detection of transparent films |
| Special version | Autocollimation Tracking function |
| Sensing Distance | 0 ... 3 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 635 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 1,500 Hz |
| Response time | 0.33 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | - |
| Wire cross section | 0.2 mmΒ² |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Stainless steel housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 IP 69K |
