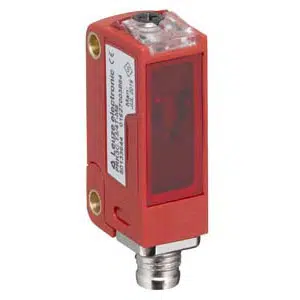

Leuze 0–5 m operating range limit and a red LED light source retro-reflective sensor PRK3C.BA3/4P-M8 - 50133640 Technical Specifications:
Specification
Value
Design
Cubic
Operating principle
Reflection principle
Application
-
Special version
Autocollimation
Sensing Distance
0 ... 4 m, With reflector TK(S) 100x100
Beam path
-
Light source
LED, Red
Wavelength
635 nm
Type of light spot geometry
-
Supply voltage UB
10 ... 30 V, DC, Incl. residual ripple
Switching Output 1
Transistor, PNP
Switching principle
Light switching
Switching Output 2
Transistor, PNP
Switching principle
Dark switching
Switching frequency
1,500 Hz
Response time
0.33 ms
Function
Signal OUT
Voltage supply
Type of connection
Connector
Thread size
M8
Type
Male
Material
Metal
No. of pins
4 -pin
Encoding
-
Dimension (W x H x L)
11.4 mm x 34.2 mm x 18.3 mm
Housing material
Plastic
Metal housing
PC-ABS
Lens cover material
Plastic / PMMA
Housing color
Red
Type of display
LED
Operational controls
Teach button
Ambient temperature, operation
-40 ... 60 °C
Ambient temperature, storage
-40 ... 70 °C
Degree of protection
IP 67 / IP 69K
Get A Quote for Leuze 0–5 m operating range limit and a red LED light source retro-reflective sensor PRK3C.BA3/4P-M8 part no: 50133640 at the best price. Here are the brief Technical Specifications of PRK3C.BA3/4P-M8, 50133640 are Cubic, Design Reflection principle, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 4 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. It's Time to get a Quote for your requirement of Leuze 0–5 m operating range limit and a red LED light source retro-reflective sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
