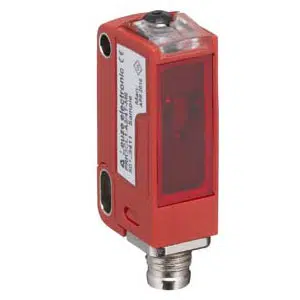

Leuze PRK3C.A3/4T-M8 | 50129403
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK3C.A3/4T-M8 |
Leuze one teach input and one digital switching output retro-reflective sensor PRK3C.A3/4T-M8 - 50129403 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | Autocollimation Teach input |
| Sensing Distance | 0 ... 4 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 635 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 1,500 Hz |
| Response time | 0.33 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Encoding | - |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Metal housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 69K |
The Leuze PRK3C.A3/4T-M8 Photoelectric Sensor is a reliable Photoelectric Sensor engineered for precision detection in industrial automation. Built by Leuze, this compact cubic sensor uses a retro-reflective principle with autocollimation, offering maintenance teams and system integrators consistent performance in material handling, packaging, and assembly line applications.
The PRK3C.A3/4T-M8 stands out with its advanced technical specifications designed for accuracy and durability. It operates on a reflection principle with a red LED light source at 635 nm, ensuring stable detection over a sensing distance of 0 to 4 m when paired with a TK(S) 100x100 reflector. With a fast switching frequency of 1,500 Hz and a response time of 0.33 ms, it can detect even high-speed moving objects without error. The sensor runs on a 10β30 V DC supply voltage and provides a reliable transistor PNP light switching output. Built in a compact 11.4 Γ 34.2 Γ 18.3 mm PC-ABS housing with IP67/IP69K protection, it withstands harsh environments including washdowns and wide ambient temperature ranges from β40 Β°C to +60 Β°C. With an integrated teach button for easy setup, LED display for status monitoring, and a metal-threaded M8 connector for secure mounting, the Leuze PRK3C.A3/4T-M8 Photoelectric Sensor delivers long-term operational reliability for demanding industrial conditions.
In industrial practice, the PRK3C.A3/4T-M8 Photoelectric Sensor is commonly applied in conveyor systems, bottling plants, and packaging lines where reliable retro-reflective detection is required. Its short response time makes it suitable for identifying fast-moving bottles, cartons, or machine parts, while its autocollimation design ensures detection accuracy even in challenging reflective backgrounds. Maintenance engineers value this model for its quick teach-in setup, which minimizes downtime during installation or product changeovers. Students and junior engineers can also benefit from studying this sensor, as it demonstrates how advanced Leuze Photoelectric Sensor technology simplifies real-world automation challenges. With proven reliability in environments requiring both speed and accuracy, the PRK3C.A3/4T-M8 is a trusted choice for automation professionals across industries.
For engineers looking for detailed technical references, resources such as the PRK3C.A3/4T-M8 manual, PRK3C.A3/4T-M8 datasheet, and updated PRK3C.A3/4T-M8 price information are crucial before finalizing design and procurement. By relying on the official Leuze documentation and authorized distributors, buyers can ensure correct installation, accurate specifications, and maximum service life of the Leuze PRK3C.A3/4T-M8 Photoelectric Sensor.
