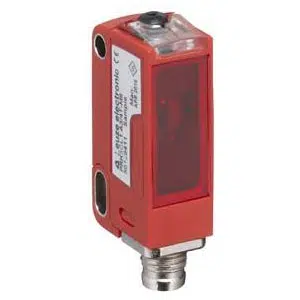

Leuze operating range of 0–4 m and Protective circuit retro-reflective sensor PRK3C.A3/4-M8.3 - 50137056 Technical Specifications:
Specification
Value
Design
Cubic
Operating principle
Reflection principle
Application
-
Special version
Autocollimation
Sensing Distance
0 ... 4 m, With reflector TK(S) 100x100
Beam path
-
Light source
LED, Red
Wavelength
635 nm
Type of light spot geometry
-
Supply voltage UB
10 ... 30 V, DC, Incl. residual ripple
Switching Output 1
Transistor, PNP
Switching principle
Light switching
Switching Output 2
-
Switching principle
-
Switching frequency
1,500 Hz
Response time
0.33 ms
Function
Signal OUT
Voltage supply
Type of connection
Connector
Thread size
M8
Type
Male
Material
Metal
No. of pins
3 -pin
Encoding
-
Dimension (W x H x L)
11.4 mm x 34.2 mm x 18.3 mm
Housing material
Plastic
Metal housing
PC-ABS
Lens cover material
Plastic / PMMA
Housing color
Red
Type of display
LED
Operational controls
Teach button
Ambient temperature, operation
-40 ... 60 °C
Ambient temperature, storage
-40 ... 70 °C
Degree of protection
IP 67 / IP 69K
Get A Quote for Leuze operating range of 0–4 m and Protective circuit retro-reflective sensor PRK3C.A3/4-M8.3 part no: 50137056 at the best price. Here are the brief Technical Specifications of PRK3C.A3/4-M8.3, 50137056 are Cubic, Design Reflection principle, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 4 m, With reflector TK(S) 100x100 Sensing Distance, 3 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. It's Time to get a Quote for your requirement of Leuze operating range of 0–4 m and Protective circuit retro-reflective sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
