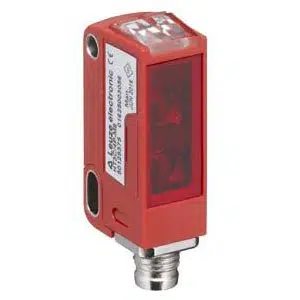

Leuze PRK3C/6-M8.3 | 50137162
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK3C/6-M8.3 |
Leuze Male, 3-pin, M8 connector retro-reflective sensor PRK3C/6-M8.3 - 50137162 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.1 ... 5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 633 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 1,500 Hz |
| Response time | 0.33 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Metal |
| No. of pins | 3 -pin |
| Encoding | - |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Metal housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 69K |
Obtain a Quote for Leuze Male, 3-pin, M8 connector retro-reflective sensor PRK3C/6-M8.3 part no: 50137162 at economical prices. Specifications Overview for PRK3C/6-M8.3, 50137162 reveals Cubic, Design Reflection principle, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, Light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.1 ... 5 m, With reflector TK(S) 100x100 Sensing Distance, 3 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze Male, 3-pin, M8 connector retro-reflective sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
