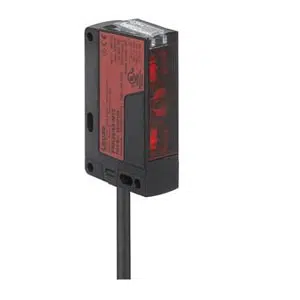

Leuze PRK36/P | 50147112
Technical Specifications of Leuze PRK36/P 50147112:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0.3 ... 17 m, With reflector TK(S) 100x100 |
| Light Source | LED, Red |
Leuze 645 nm Wavelength and protective circuit retro-reflective sensor PRK36/P - 50147112 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.3 ... 17 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 300 Hz |
| Response time | 1.66 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.14 mm² |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Lens cover material | PC-PBT |
| Housing color | Black |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
Obtain a Quote for Leuze 645 nm Wavelength and protective circuit retro-reflective sensor PRK36/P part no: 50147112 at attractive prices. Engineering Specifications of PRK36/P, 50147112 detail Cubic, Design Reflection principle, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Dark switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.3 ... 17 m, With reflector TK(S) 100x100 Sensing Distance, 3 -wire Number of conductors, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 645 nm Wavelength and protective circuit retro-reflective sensor. Navigate Your Needs with a Quote for your requirement of Leuze 645 nm Wavelength and protective circuit retro-reflective sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
