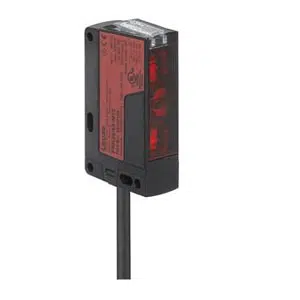

Leuze PRK36/N | 50147114
Technical Specifications of Leuze PRK36/N 50147114:
Spec | Value |
---|---|
Design | Cubic |
Operating Principle | Reflection principle |
Sensing Distance | 0.3 ... 17 m, With reflector TK(S) 100x100 |
Light Source | LED, Red |
Leuze PUR Cable Cable length, 3-wire retro-reflective sensor PRK36/N - 50147114 Technical Specifications:
Specification | Value |
---|---|
Design | Cubic |
Operating principle | Reflection principle |
Application | - |
Special version | - |
Sensing Distance | 0.3 ... 17 m, With reflector TK(S) 100x100 |
Beam path | - |
Light source | LED, Red |
Wavelength | 645 nm |
Type of light spot geometry | - |
Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
Switching Output 1 | Transistor, NPN |
Switching principle | Dark switching |
Switching Output 2 | - |
Switching principle | - |
Switching frequency | 300 Hz |
Response time | 1.66 ms |
Function | Signal OUT Voltage supply |
Type of connection | Cable |
Cable length | 2,000 mm |
Sheathing material | PUR |
Cable color | Black |
Number of conductors | 3 -wire |
Wire cross section | 0.14 mm² |
Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
Housing material | Plastic |
Lens cover material | PC-PBT |
Housing color | Black |
Type of display | LED |
Operational controls | - |
Ambient temperature, operation | -40 ... 60 °C |
Ambient temperature, storage | -40 ... 70 °C |
Degree of protection | IP 67 |
Send Your Inquiry for Leuze PUR Cable Cable length, 3-wire retro-reflective sensor PRK36/N part no: 50147114 at affordable rates. Core System Specifications of PRK36/N, 50147114 are Cubic, Design Reflection principle, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Dark switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.3 ... 17 m, With reflector TK(S) 100x100 Sensing Distance, 3 -wire Number of conductors, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze PUR Cable Cable length, 3-wire retro-reflective sensor. Initiate Your Journey with a Quote for your requirement of Leuze PUR Cable Cable length, 3-wire retro-reflective sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Suppliers & Traders.
