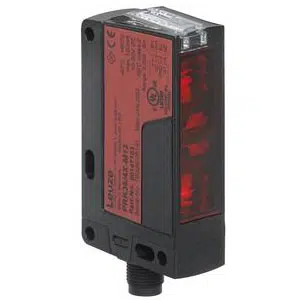

Leuze PRK36/4X-M12 | 50147103
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK36/4X-M12 |
Leuze M12 connector and four male pins retro-reflective photoelectric sensor PRK36/4X-M12 - 50147103 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.3 ... 17 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 300 Hz |
| Response time | 1.66 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Metal housing | PC-PBT |
| Lens cover material | Plastic / PMMA |
| Housing color | Black |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Mail Us for your needs in Leuze M12 connector and four male pins retro-reflective photoelectric sensor PRK36/4X-M12 part no: 50147103 with budget-friendly prices. The Main Technical Parameters of PRK36/4X-M12, 50147103 include Cubic, Design Reflection principle, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.3 ... 17 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze M12 connector and four male pins retro-reflective photoelectric sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
