Leuze PRK328.W3/4P-M12 | 50122689
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK328.W3/4P-M12 |

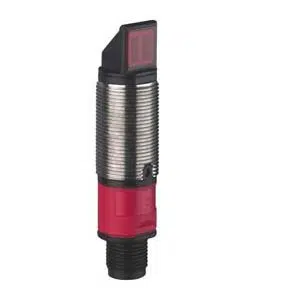

Leuze cylindrical design and M12 thread size retro-reflective photoelectric sensor PRK328.W3/4P-M12 - 50122689 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | 90Β° - angular optics |
| Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 18 mm x 61 mm |
| Housing material | Plastic Stainless steel |
| Metal housing | ABS |
| Lens cover material | Plastic |
| Housing color | Black Silver |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
IndMALL Automation Dealing offers Leuze cylindrical design and M12 thread size retro-reflective photoelectric sensor PRK328.W3/4P-M12 part no: 50122689 at attractive prices. Key Technical Features of PRK328.W3/4P-M12, 50122689 are Cubic, Design Reflection principle, 18 mm x 61 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic
Stainless steel Housing material, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze cylindrical design and M12 thread size retro-reflective photoelectric sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
