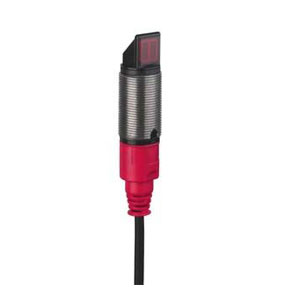

Leuze PRK328.W3/4P Photoelectric Sensor
The Leuze PRK328.W3/4P Photoelectric Sensor (Part No: 50122690 ) offers a Cubic design, Transistor, PNP output, PUR Cable 4 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK328.W3/4P |
Leuze PRK328.W3/4P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | 90Β° - angular optics |
| Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mmΒ² |
| Dimension (W x H x L) | 18 mm x 61 mm |
| Housing material | Plastic Stainless steel |
| Lens cover material | Plastic |
| Housing color | Black Silver |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Mail us for Leuze 18 mm x 61 mm Dimension retro-reflective photoelectric sensor PRK328.W3/4P part no: 50122690 with budget-friendly prices. Technical Details of PRK328.W3/4P, 50122690 are Cubic, Design Reflection principle, 18 mm x 61 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -wire Number of conductors, Plastic
Stainless steel Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 18 mm x 61 mm Dimension retro-reflective photoelectric sensor. Elevate Your Project with a Quote for your requirement of Leuze 18 mm x 61 mm Dimension retro-reflective photoelectric sensor. Rest assured, our pricing and support outshine other Suppliers.
