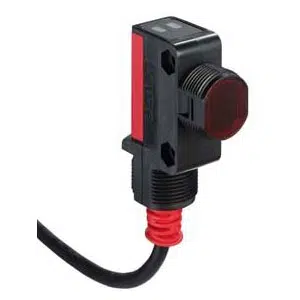

Leuze PRK28/4P Photoelectric Sensor
The Leuze PRK28/4P Photoelectric Sensor (Part No: 50117925 ) offers a Cubic design, Transistor, PNP output, PUR Cable 3 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK28/4P |
Leuze PRK28/4P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.14 mmΒ² |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Lens cover material | Plastic / PMMA |
| Housing color | Black / Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
IndMALL provides Leuze LED light source and wavelength of 620 nm retro-reflective sensor PRK28/4P part no: 50117925 at the lowest pricing. In-depth Technical Analysis of PRK28/4P, 50117925 include Cubic, Design Reflection principle, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 3 -wire Number of conductors, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze LED light source and wavelength of 620 nm retro-reflective sensor. Capture the Best Deal with a Quote for your requirement of Leuze LED light source and wavelength of 620 nm retro-reflective sensor. Our promise: More affordable pricing and more personalized support than other Dealers.
