Many procurement teams check PRK25CL1-1-48-M12 against Sick Diffuse Sensor, Leuze Ls5B Xx 200 M12 and Leuze Proximity Sensor before signing purchase orders, verifying quality, compliance, and after-sales support availability.

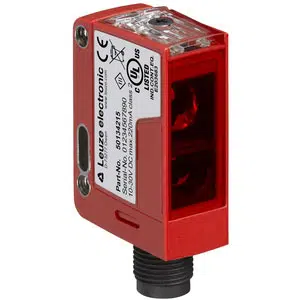

Leuze PRK25CL1.1/48-M12 | 50139659
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK25CL1.1/48-M12 |
Leuze 15 mm x 42.7 mm x 30mm Dimension retro-reflective sensor PRK25CL1.1/48-M12 - 50139659 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | Activation input |
| Sensing Distance | 0.2 ... 20 m, With reflector TK(S) 100x100 |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 650 nm |
| Type of light spot geometry | elliptic |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 2,500 Hz |
| Response time | 0.33 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | PUR |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Metal housing | ABS |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Operational controls | 270Β° potentiometer |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 69K |
Mail Us for your needs in Leuze 15 mm x 42.7 mm x 30mm Dimension retro-reflective sensor PRK25CL1.1/48-M12 part no: 50139659 with budget-friendly prices. The Main Technical Parameters of PRK25CL1.1/48-M12, 50139659 include Cubic, Design Reflection principle, 15 mm x 42.7 mm x 30 mm Dimension, Laser, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.2 ... 20 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. Customize Your Experience with a Quote for your requirement of Leuze 15 mm x 42.7 mm x 30mm Dimension retro-reflective sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
