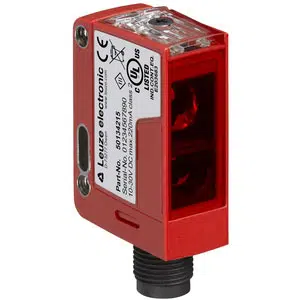

Leuze PRK25CL1.1/2N-M12 | 50139657
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK25CL1.1/2N-M12 |
Leuze 0.15-25 m Operating range limit retro-reflective sensor PRK25CL1.1/2N-M12 - 50139657 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.2 ... 20 m, With reflector TK(S) 100x100 |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 650 nm |
| Type of light spot geometry | elliptic |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, NPN |
| Switching principle | Dark switching |
| Switching frequency | 2,500 Hz |
| Response time | 0.33 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | PUR |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Metal housing | ABS |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Operational controls | 270Β° potentiometer |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 69K |
Talk to Our Engineer for Leuze 0.15-25 m Operating range limit retro-reflective sensor PRK25CL1.1/2N-M12 part no: 50139657 with exclusive offers. Core System Specifications of PRK25CL1.1/2N-M12, 50139657 are Cubic, Design Reflection principle, 15 mm x 42.7 mm x 30 mm Dimension, Laser, Red Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.2 ... 20 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. Don't Miss Out on a Quote for your requirement of Leuze 0.15-25 m Operating range limit retro-reflective sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
