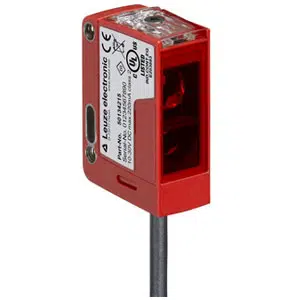

Leuze PRK25CL1.1/2N Photoelectric Sensor
The Leuze PRK25CL1.1/2N Photoelectric Sensor (Part No: 50139664 ) offers a Cubic design, Transistor, NPN output, PUR Cable 4 -wire. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the PRK Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK25CL1.1/2N |
Leuze PRK25CL1.1/2N Photoelectric Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.2 ... 20 m, With reflector TK(S) 100x100 |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 650 nm |
| Type of light spot geometry | elliptic |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, NPN |
| Switching principle | Dark switching |
| Switching frequency | 2,500 Hz |
| Response time | 2,500 Hz |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mmยฒ |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Operational controls | 270ยฐ potentiometer Teach button |
| Ambient temperature, operation | -40 ... 60 ยฐC |
| Ambient temperature, storage | -40 ... 70 ยฐC |
| Degree of protection | IP 67 / IP 69K |
IndMALL provides Leuze 2,000 mm Cable PUR, 4 -wire conductors retro-reflective sensor PRK25CL1.1/2N part no: 50139664 at the lowest pricing. In-depth Technical Analysis of PRK25CL1.1/2N, 50139664 include Cubic, Design Reflection principle, 15 mm x 42.7 mm x 30 mm Dimension, Laser, Red Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.2 ... 20 m, With reflector TK(S) 100x100 Sensing Distance, 4 -wire Number of conductors, Plastic Housing material, IP 67 / IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 2,000 mm Cable PUR, 4 -wire conductors retro-reflective sensor. Capture the Best Deal with a Quote for your requirement of Leuze 2,000 mm Cable PUR, 4 -wire conductors retro-reflective sensor. Our promise: More affordable pricing and more personalized support than other Dealers.
