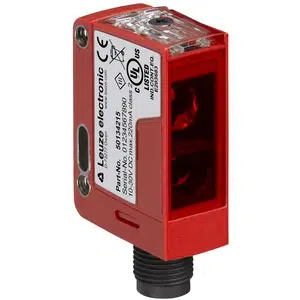

Leuze PRK25CL1.1/28-M12 | 50139660
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK25CL1.1/28-M12 |
Leuze laser retro-reflective sensor IP67/IP69K protection rating PRK25CL1.1/28-M12 - 50139660 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | Activation input |
| Sensing Distance | 0.2 ... 20 m, With reflector TK(S) 100x100 |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 650 nm |
| Type of light spot geometry | elliptic |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 2,500 Hz |
| Response time | 0.33 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | PUR |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Metal housing | ABS |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Operational controls | 270Β° potentiometer |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 69K |
Call us for Leuze laser retro-reflective sensor IP67/IP69K protection rating PRK25CL1.1/28-M12 part no: 50139660 at the best rates. Technical Attributes of PRK25CL1.1/28-M12, 50139660 are Cubic, Design Reflection principle, 15 mm x 42.7 mm x 30 mm Dimension, Laser, Red Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.2 ... 20 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze laser retro-reflective sensor IP67/IP69K protection rating. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
