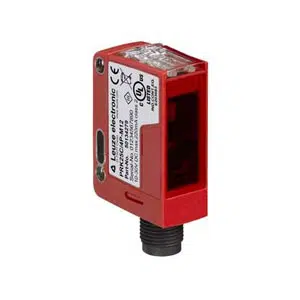

Leuze PRK25C.D/PX-M12 | 50138223

BrandLeuze
Product TypePhotoelectric Sensor
ProductPRK25C.D/PX-M12

Leuze 0.05–10M, transistor, PNP, and M12 connector retro-reflective sensor PRK25C.D/PX-M12 - 50138223 Technical Specifications:

SpecificationValue
DesignCubic
Operating principleReflection principle
ApplicationDetection of stretch-wrapped objects
Special version-
Sensing Distance0.05 ... 8 m, With reflector TK(S) 100x100
Beam path-
Light sourceLED, Red
Wavelength640 nm
Type of light spot geometry-
Supply voltage UB10 ... 30 V, DC, Incl. residual ripple
Switching Output 1Transistor, PNP
Switching principleDark switching
Switching Output 2-
Switching principle-
Switching frequency1,500 Hz
Response time0.33 ms
FunctionSignal OUT Voltage supply
Type of connectionConnector
Thread sizeM12
TypeMale
MaterialPUR
No. of pins4 -pin
EncodingA-coded
Dimension (W x H x L)15 mm x 42.7 mm x 30 mm
Housing materialPlastic
Metal housingABS
Lens cover materialPlastic
Housing colorRed
Type of displayLED
Operational controls-
Ambient temperature, operation-40 ... 60 °C
Ambient temperature, storage-40 ... 70 °C
Degree of protectionIP 67 / IP 69K
Ask for the Pricing of Leuze 0.05–10M, transistor, PNP, and M12 connector retro-reflective sensor PRK25C.D/PX-M12 part no: 50138223 at unbeatable prices. Detailed Specifications of PRK25C.D/PX-M12, 50138223 feature Cubic, Design Reflection principle, 15 mm x 42.7 mm x 30 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Dark switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.05 ... 8 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 0.05–10M, transistor, PNP, and M12 connector retro-reflective sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
