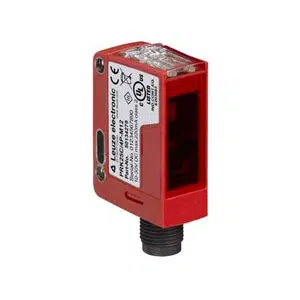

Leuze PRK25C.D/PX-M8 | 50139555

Brand	Leuze
Product Type	Photoelectric Sensor
Product	PRK25C.D/PX-M8

Leuze M8, PUR, 4-pin connector retro-reflective sensor PRK25C.D/PX-M8 - 50139555 Technical Specifications:

Specification	Value
Design	Cubic
Operating principle	Reflection principle
Application	Detection of stretch-wrapped objects
Special version	-
Sensing Distance	0.05 ... 8 m, With reflector TK(S) 100x100
Beam path	-
Light source	LED, Red
Wavelength	640 nm
Type of light spot geometry	-
Supply voltage UB	10 ... 30 V, DC, Incl. residual ripple
Switching Output 1	Transistor, PNP
Switching principle	Dark switching
Switching Output 2	-
Switching principle	-
Switching frequency	1,500 Hz
Response time	0.33 ms
Function	Signal OUT Voltage supply
Type of connection	Connector
Thread size	M8
Type	Male
Material	PUR
No. of pins	4 -pin
Encoding	-
Dimension (W x H x L)	15 mm x 42.7 mm x 30 mm
Housing material	Plastic
Metal housing	ABS
Lens cover material	Plastic
Housing color	Red
Type of display	LED
Operational controls	-
Ambient temperature, operation	-40 ... 60 °C
Ambient temperature, storage	-40 ... 70 °C
Degree of protection	IP 67 / IP 69K

IndMALL Automation Dealing offers Leuze M8, PUR, 4-pin connector retro-reflective sensor PRK25C.D/PX-M8 part no: 50139555 at attractive prices. Key Technical Features of PRK25C.D/PX-M8, 50139555 are Cubic, Design Reflection principle, 15 mm x 42.7 mm x 30 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Dark switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.05 ... 8 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze M8, PUR, 4-pin connector retro-reflective sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
