Detection of highly transparent bottles
Detection of transparent films
Special version
Autocollimation
Sensing Distance
0 ... 5 m, With reflector TK(S) 100x100
Beam path
-
Light source
LED, Red
Wavelength
640 nm
Type of light spot geometry
-
Supply voltage UB
10 ... 30 V, DC, Incl. residual ripple
Switching Output 1
Transistor, PNP
Switching principle
Light switching
Switching Output 2
Transistor, PNP
Switching principle
Dark switching
Switching frequency
1,500 Hz
Response time
0.33 ms
Function
Signal OUT
Voltage supply
Type of connection
Connector
Thread size
M8
Type
Male
Material
Metal
No. of pins
4 -pin
Encoding
-
Dimension (W x H x L)
15 mm x 42.7 mm x 30 mm
Housing material
Plastic
Metal housing
ABS
Lens cover material
Plastic
Housing color
Red
Type of display
LED
Operational controls
Multiturn potentiometer
Ambient temperature, operation
-40 ... 60 Β°C
Ambient temperature, storage
-40 ... 70 Β°C
Degree of protection
IP 67 IP 69K

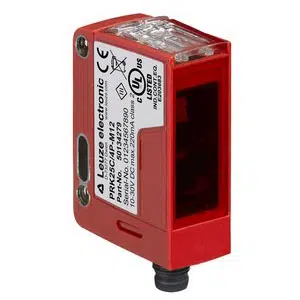

Talk to Our Engineer for Leuze autocollimation and Protective circuit retro-reflective sensor PRK25C.A2/4P-M8 part no: 50134257 with exclusive offers. Core System Specifications of PRK25C.A2/4P-M8, 50134257 are Cubic, Design Reflection principle, 15 mm x 42.7 mm x 30 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0 ... 5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 IP 69K degree of protection. Don't Miss Out on a Quote for your requirement of Leuze autocollimation and Protective circuit retro-reflective sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
