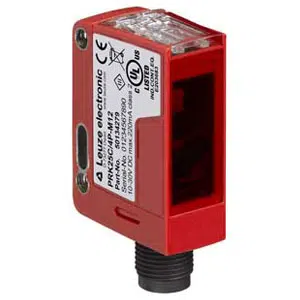

Leuze 25C series and uses a reflection principle retro-reflective sensor PRK25C/48-M12 - 50139551 Technical Specifications:
Specification
Value
Design
Cubic
Operating principle
Reflection principle
Application
-
Special version
Activation input
Sensing Distance
0.05 ... 10 m, With reflector TK(S) 100x100
Beam path
-
Light source
LED, Red
Wavelength
640 nm
Type of light spot geometry
-
Supply voltage UB
10 ... 30 V, DC, Incl. residual ripple
Switching Output 1
Transistor, PNP
Switching principle
Light switching
Switching Output 2
-
Switching principle
-
Switching frequency
1,500 Hz
Response time
0.33 ms
Function
Signal IN
Signal OUT
Voltage supply
Type of connection
Connector
Thread size
M12
Type
Male
Material
PUR
No. of pins
4 -pin
Encoding
A-coded
Dimension (W x H x L)
15 mm x 42.7 mm x 30 mm
Housing material
Plastic
Metal housing
ABS
Lens cover material
Plastic
Housing color
Red
Type of display
LED
Operational controls
-
Ambient temperature, operation
-40 ... 60 Β°C
Ambient temperature, storage
-40 ... 70 Β°C
Degree of protection
IP 67 / IP 69K
Please speak to our Technical Engineer for Leuze 25C series and uses a reflection principle retro-reflective sensor PRK25C/48-M12 part no: 50139551 at attractive prices. Technical Specs Summary of PRK25C/48-M12, 50139551 includes Cubic, Design Reflection principle, 15 mm x 42.7 mm x 30 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.05 ... 10 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. Match Your Needs with a Quote for your requirement of Leuze 25C series and uses a reflection principle retro-reflective sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
