In most procurement cycles, PRK25C-2N-M12 is considered with P&F Photo Sensor, Leuze Proximity Sensor and Leuze Ls5B Xx 200 M12, giving decision-makers confidence that theyβve chosen the most dependable component.

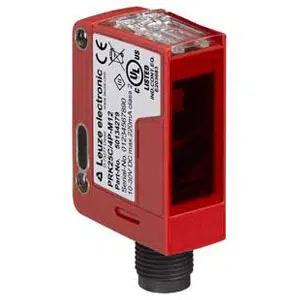

Leuze PRK25C/2N-M12 | 50134283
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK25C/2N-M12 |
Leuze Polarized retro-reflective photoelectric sensor with response time 0.33 ms PRK25C/2N-M12 - 50134283 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.05 ... 10 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 640 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, NPN |
| Switching principle | Dark switching |
| Switching frequency | 1,500 Hz |
| Response time | 0.33 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | PUR |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Metal housing | ABS |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 69K |
Get A Quote for Leuze Polarized retro-reflective photoelectric sensor with response time 0.33 ms PRK25C/2N-M12 part no: 50134283 at the best price. Here are the brief Technical Specifications of PRK25C/2N-M12, 50134283 are Cubic, Design Reflection principle, 15 mm x 42.7 mm x 30 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.05 ... 10 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 / IP 69K degree of protection. It's Time to get a Quote for your requirement of Leuze Polarized retro-reflective photoelectric sensor with response time 0.33 ms. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
